Custom Cable Assemblies · Melbourne, Australia

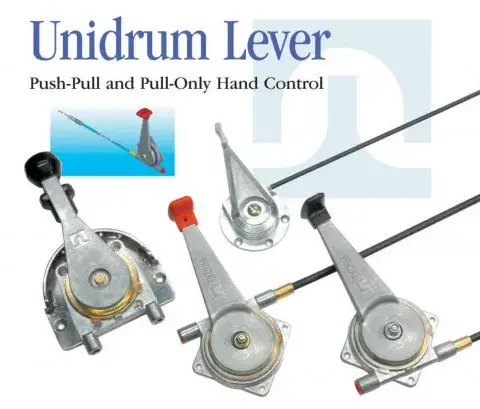

The Unidrum Lever is a compact hand-control head that operates a push-pull or pull-only cable from a lever designed primarily for hand-throttle applications on commercial and industrial vehicles, and suitable for many other remote controls. It holds and operates up to 26 lb of output load with a 5:1 mechanical advantage at the knob. TGA Cables builds Unidrum hand controls and their cables to your exact specification, supplied Australia-wide.
The Unidrum Lever is a lever-operated control head: the operator moves the lever, and the Unidrum imparts light-to-medium push-pull or pull-only loads to a remote output through a flexible conduit and inner-member. It’s most often used as a hand throttle setting and holding engine speed by hand but suits many remote control tasks where a compact, efficient hand lever is needed. A self-locking nut lets the operator set the friction, so the control stays where it’s placed.
Need a Unidrum hand throttle or custom cable?
Tell us the application or send a photo of the old unit and we’ll match it.
| Specification | Detail |
|---|---|
| Control type | Push-pull or pull-only hand control head |
| Output load | Up to 26 lb push-pull or pull-only |
| Mechanical advantage | 5 : 1 at the knob |
| Friction setting | Self-locking nut for operator adjustment |
| Travel adjustment | Adjustable stop plates 10° (~3/16″ linear output) increments |
| Cable vs lever travel | ~2″ cable ≈ 90° lever; ~3″ cable ≈ 135° lever |
| Lever position | Adjustable in 60° increments for optimum operating range |
| Cable entry / mounting | Optional cable entry four mounting directions / operating alternatives |
| Handle options | Standard, smaller handle (light duty) or locking handle |
The Unidrum Lever is the hand-throttle control used with the 165-574-002 configuration of our heavy-duty throttle pedal , giving both foot and hand throttle. See also our push-pull cables , pull-only cables and control cables .
26+ years manufacturing custom hand controls and cable assemblies
Push-pull and pull-only Unidrum heads, built to spec
Four mounting options and standard, light-duty or locking handles
Matches and replacements for existing units
Australian-made in Melbourne (Croydon South), supplied Australia-wide
A compact hand-control head that operates a push-pull or pull-only cable from a lever designed mainly for hand-throttle applications on commercial and industrial vehicles, and suitable for many other remote controls
Up to 26 lb of push-pull or pull-only output load, with a 5:1 mechanical advantage at the knob.
About 2″ of cable travel needs ~90° of lever travel, and 3″ needs ~135°. Stop plates allow 10° (~3/16″) increments, and the lever position adjusts in 60° increments.
Optional cable entry gives four mounting directions; a self-locking nut sets the friction. Available with a smaller handle (light duty) or a locking handle.
Yes, built to your spec (length, fittings, handle, mounting), and we can match replacements. Send the old unit or a photo and your requirements.
Push-pull or pull-only, custom-built in Melbourne, shipped Australia-wide.
