HEAVY DUTY THROTTLE

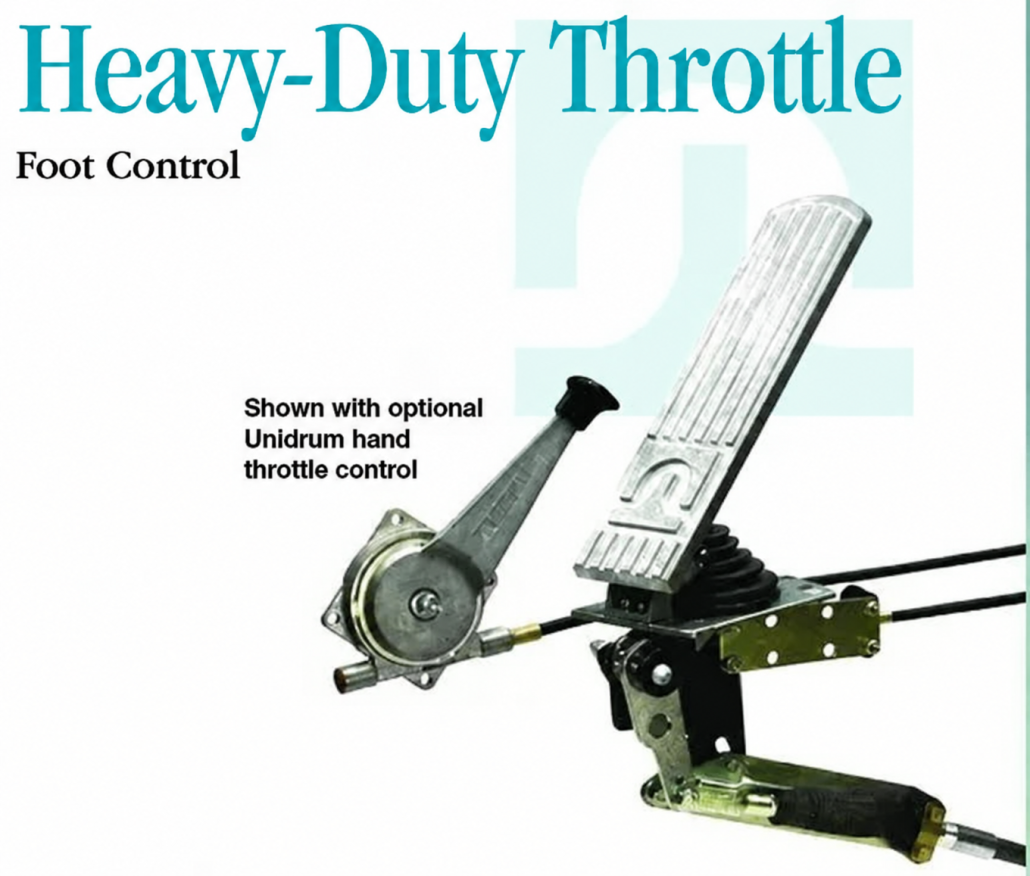

The 165-574-001 and -002 throttle pedals are intended for medium and heavy-duty trucks, construction and farm equipment, and buses. The -001 configuration is a foot throttle only design. The -002 configuration adds hardware allowing for a manual remote hand operated throttle control. A torsion spring is incorporated for idle position return.
Environmental contamination is minimized by a plastic boot installed between the pedal and mounting base. Idle pedal position and throttle travel is adjustable to meet user requirements. The entire lower portion of the assembly can be inserted through a cut-out in the floor, and will rotate 360° and down 30° maximum from horizontal to optimize throttle cable routing.
Multiple fastener holes are incorporated into the base to accommodate different mounting patterns. The pedal surface is ribbed to reduce foot slippage and increase strength. Corrosion-resistant die cast components, plated steel hardware, and plastic bushings all provide years of smooth, trouble-free service.
